Coffee Capsule & Cup Filling Machine

Coffee Capsule & Cup Filling Sealing Machine is automatic high-speed sealing machine. From drop cups, filling, put the film, print dates, sealing to out are all automatic operation. The electrical and pneumatic components are all using famous brands ( can be also customized by customers’ requirements), with stable quality, long life. It is mainly used in the products packing like: coffee powder, tea powder, water, yogurt, honey, sauce and so on.

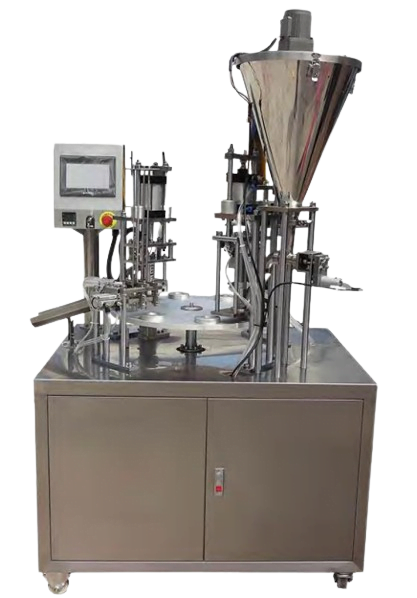

Rotary Coffee Capsule Filling Sealing Machine

Technical Data

Production Capacity: 600-1800 cups/h
Cup Capacity: 5-50g
Tank Capacity: 30L
Accurate: ≤± 1%
Heating Power: 1KW
Gas Consumption: 0.6 cubic meters/min
Control: PLC Control System
Display: Touch Screen Display
Feature: No Cup No Filling
Source: 220V, 50Hz
Dimensions (L*W*H): 1250*1250*1650mm
Weight: 250KG
Sealing Film: Plastic Roll Film, Plastic Pre-Cut Film, Aluminum Pre-Cut Film
Suitable for : Coffee Powder Products, Tea Powder, Cocoa Powder, etc.
Applicable Capsules: Compatible Nespresso, Dolce Gusto, Lavazza Blue, Point, POD, KCUP, Kshot, One Cup

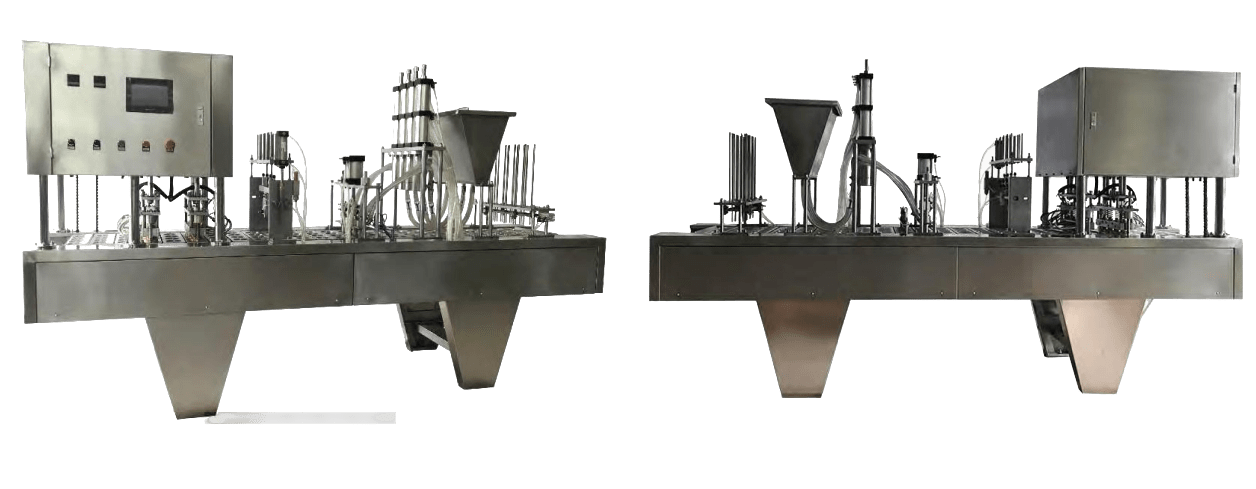

Linear Coffee Capsule Filling Sealing Machine

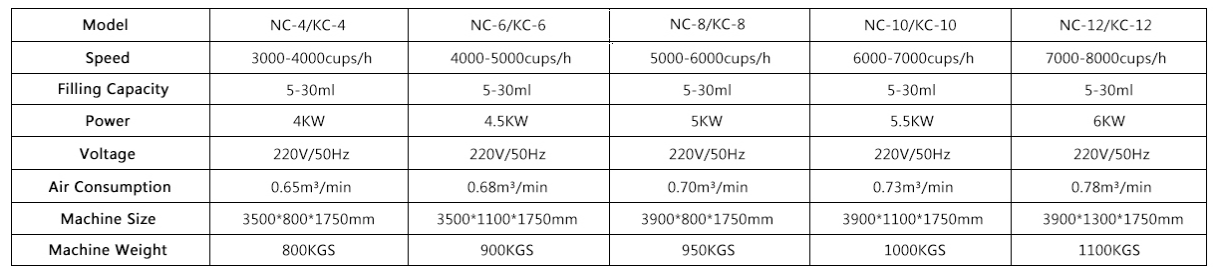

MODELS

CHARACTERISTICS

The whole machine with advanced design, reasonable structure, reliable performance.
Automatic operation, the production rate can be adjustable, simple and safe operation, increase productivity, reduce labor costs.
Photocell eye calibration, ensure the accuracy of filling.
Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer’ requirements for easy to tear and not easy to tear, which embodies a
higher level of human design.
The sealing edges are smooth and flawless.
The machine can be customized according to customer’ needs and add other auxiliary functions

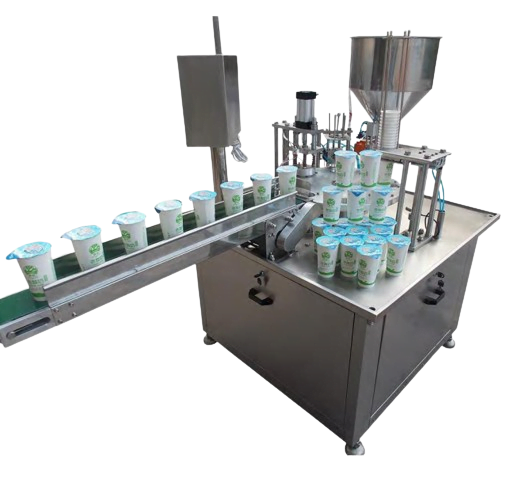

Automatic Rotary Cup Filling Sealing Machine

Technical Data

Production Capacity: 600-800cups/hour
Cup Capacity: Sealing 50-300ml
Diameter: Tank Customized
Capacity: Heating 30L
Power: 1KW
Gas Consumption: 0.6 cubic meters/min
Power Source: 220V, 50Hz
Dimensions (L*W*H): 1250*1250*1650mm
Weight: 250KG
Applicable Cups: Plastic Cups, Paper Cups
Applications: Beverage, Milk, Yogurt, Dairy Products, Soy Products, Fruit Frozen Brewing, etc.

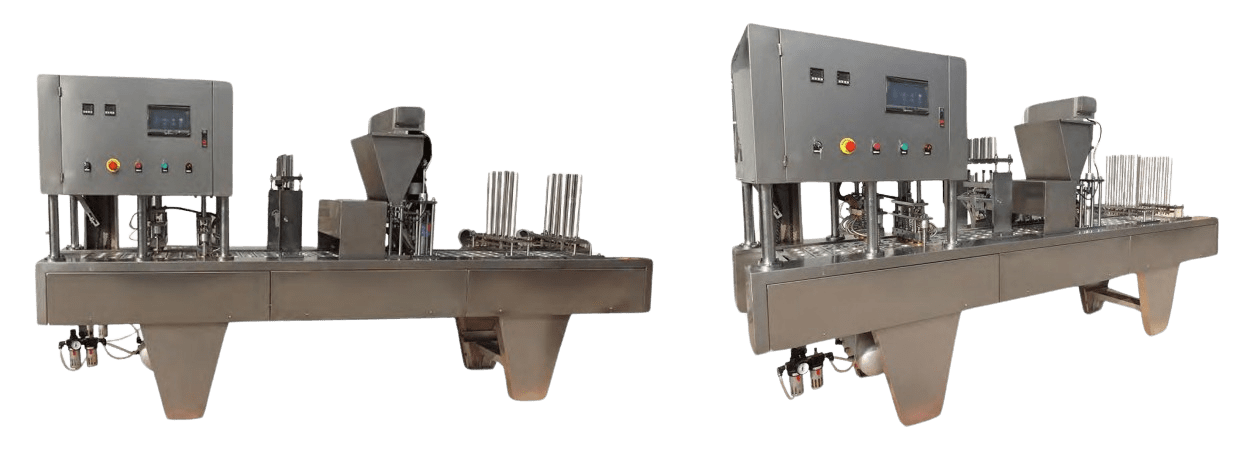

Automatic Linear Cup Filling Sealing Machine

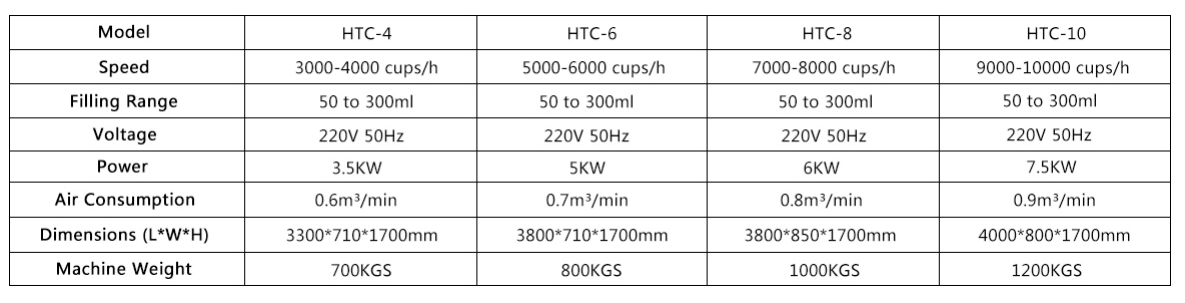

MODELS

CHARACTERISTICS

The complete process flow is fully automatic.
PLC control can keep the machine work stably.
Machine frame uses u-steel with waterproof and rust prevention process, out packed by stainless steel #304.
All components are from famous brand company, all of them are produced under strict standards, so their quality are amazing good.
Moving molds are made by aluminum material , extraordinary durable and sanitary.
Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer’ requirements for easy to tear and not easy to tear, which embodies a
higher level of human design.
